How to Read a Tape Measure

A tape measure looks busy, but every line on it follows one simple rule: the longer the line, the bigger the fraction it marks. Learn that hierarchy once and you can read any tape in the country without squinting or counting twice.

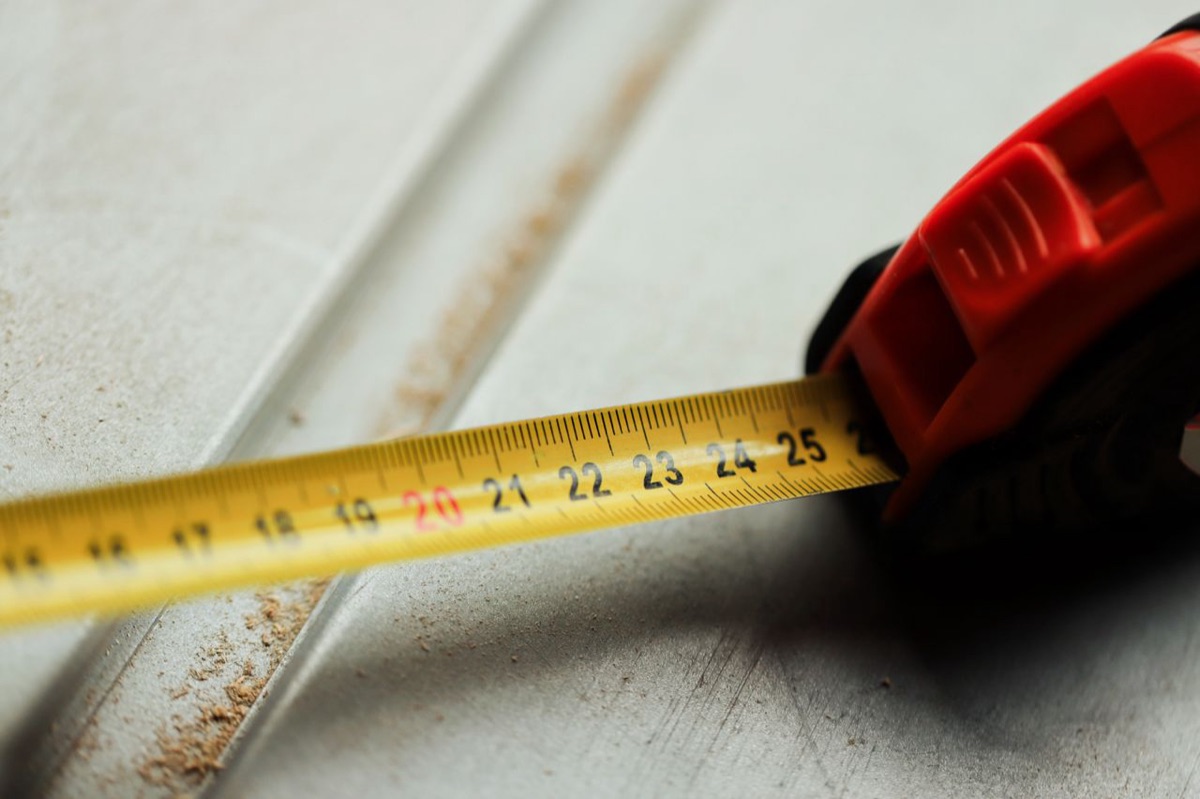

The big marks: inches and feet

The longest lines with numbers next to them are the inch marks. On most tapes the inches run continuously — 1, 2, 3 … all the way to the end — and the foot marks are called out in a different color or with a small "1F", "2F" label. So the 16-inch mark might also be labeled "1F 4″" (one foot, four inches). Twelve inches make a foot, so any inch number can be rewritten as feet and inches.

The lines between the inches

Between any two inch marks the tape is divided into sixteenths. Here is the whole ladder, longest line to shortest:

• 1/2 inch — the single longest line in the middle of the inch.
• 1/4 inch — the next longest, splitting each half in two.
• 1/8 inch — shorter still, splitting each quarter.
• 1/16 inch — the smallest lines, sixteen of them per inch.

That visual ranking is the whole trick. You don't count tiny lines one by one — you find the nearest longer landmark and step in from there. A mark that sits one small line past the 1/2 is 1/2 + 1/16 = 9/16.

Quick tip: always reduce. The tape shows sixteenths, but 8/16 is just 1/2, and 4/16 is 1/4. Saying "a half" out loud is faster and harder to misremember than "eight sixteenths."

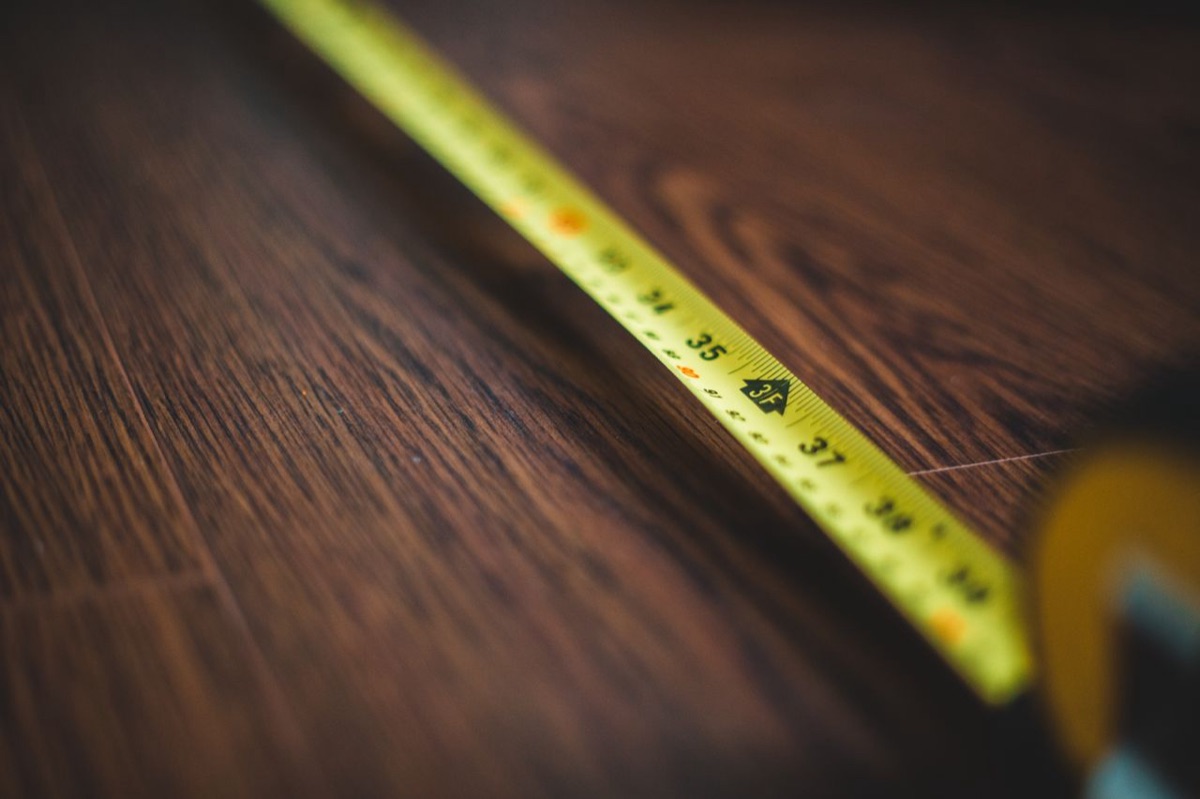

What the red numbers and black diamonds mean

Two markings confuse a lot of first-timers, and both exist to help frame walls:

• Red numbers (or red boxes) appear every 16 inches — 16, 32, 48, 64. That's the standard on-center spacing for wall studs, so framers can mark stud locations without doing the math.
• Black diamonds (sometimes called the "black truss mark") fall every 19.2 inches. Five of them divide an 8-foot sheet into equal parts for engineered floor joists.

If you're not framing, you can safely ignore both — they sit right alongside the normal inch and fraction marks.

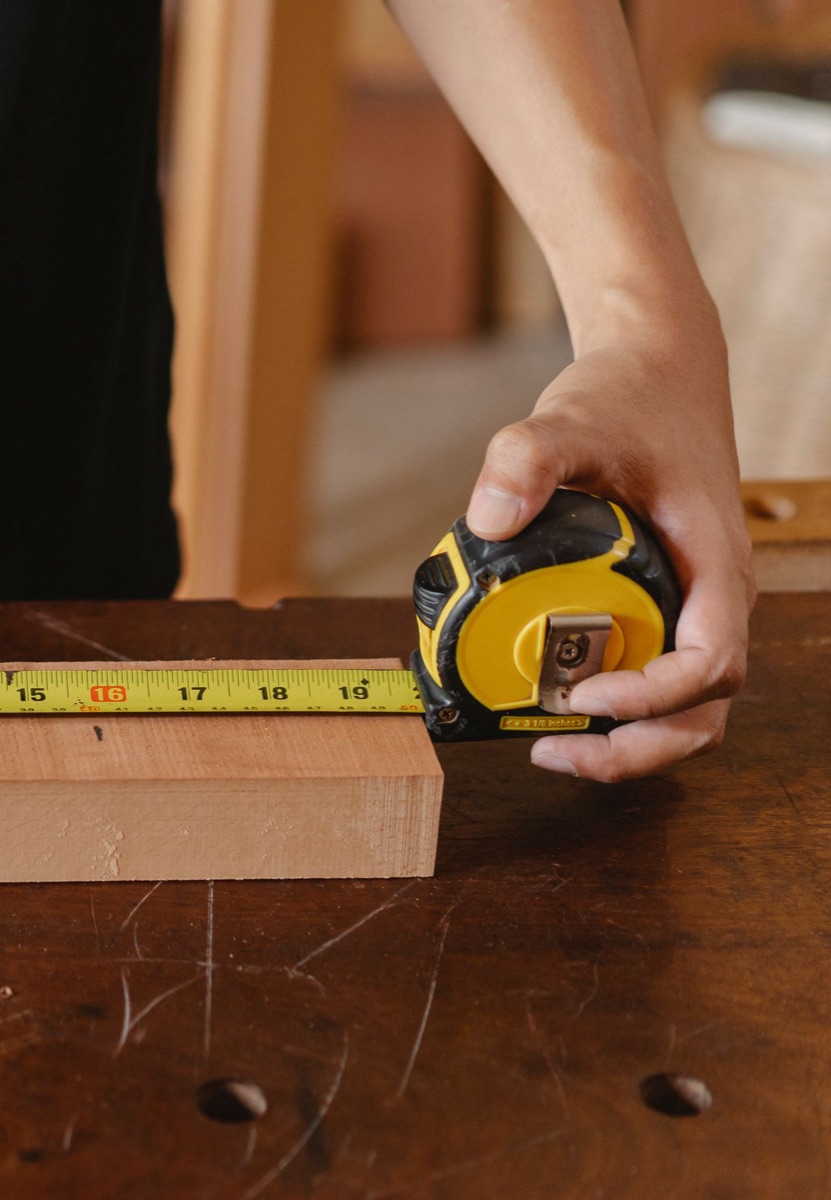

Reading a measurement, step by step

1. Read the whole inches — the last numbered inch mark your object passes.
2. Find the nearest long fraction line past that inch (1/2, then 1/4, then 1/8).
3. Count the small lines to the exact mark and add them as sixteenths.
4. Reduce the fraction to its simplest form.

Example: your cut lands three small lines past the 7-inch mark, just past the 1/8 line. Three sixteenths past 7 is 7 3/16″. Done.

Don't forget the hook

The little metal hook at the end of the tape is supposed to wiggle. It slides exactly the thickness of itself so the tape reads correctly whether you hook it over an edge (pulling) or butt it against a surface (pushing). Never crimp it tight to stop the rattle — you'll throw off every measurement by about 1/16″.

Once you can read the blade confidently, the next challenge is doing math with what you read — adding two boards, subtracting a saw kerf, or splitting a span evenly. That's exactly where fractions get fiddly, and where adding and subtracting feet and inches comes in. If the fractions themselves still feel shaky, start with tape-measure fractions explained.
